CTFDINTFT-1 - 7" InDash VGA Touchscreen USB - fully motorized - Radio AM/FM - Card reader (not in stock until 11.03.2011)
PRODUCT IS CURRENTLY NOT AVAILABLE !
- Radio FM !
- DIN size !
- Card reader !
- Fully motorized !
Complete PC VGA Touchscreen TFT solution for the Radio-DIN-slot.
Many features and functions
The fully motorized 7“ touchscreen display enables comfortable control. Directly at the front, behind a cover, there is an USB connector, a CompactFlash/SD-card reader and earphone connector. These connectors are "looped through" to the device rear side where you can connect them to your PC.
The integrated AM/FM radio can be used while PC is turned off and the 4x45 amplifier lets you connect your car speakers to the device.
Customized for mobile environment
The display can get wired to vehicle ignition plus line and thereby fade in
[more]
| Front |
|

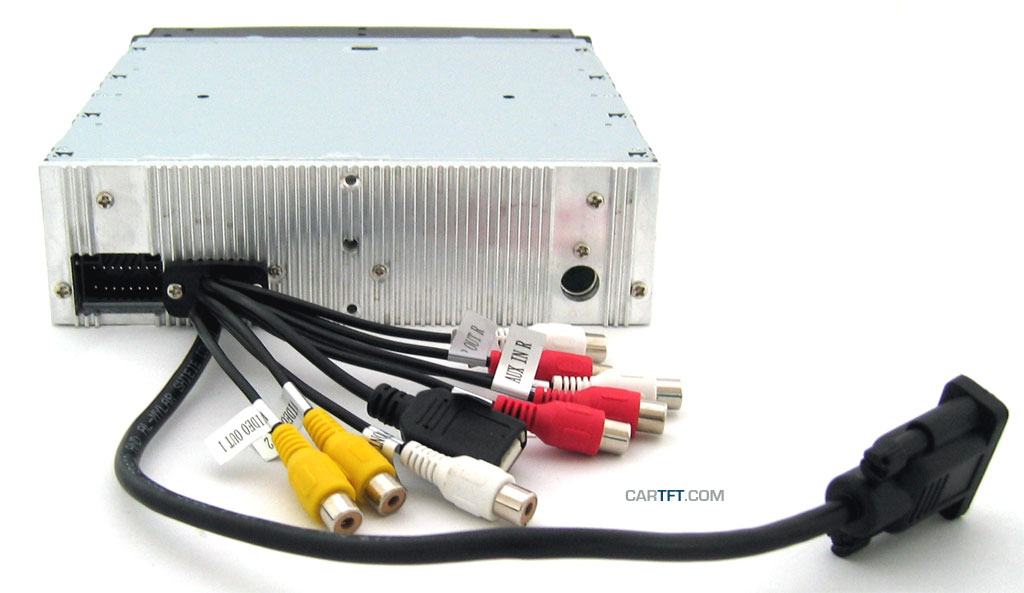

| Rear |
|

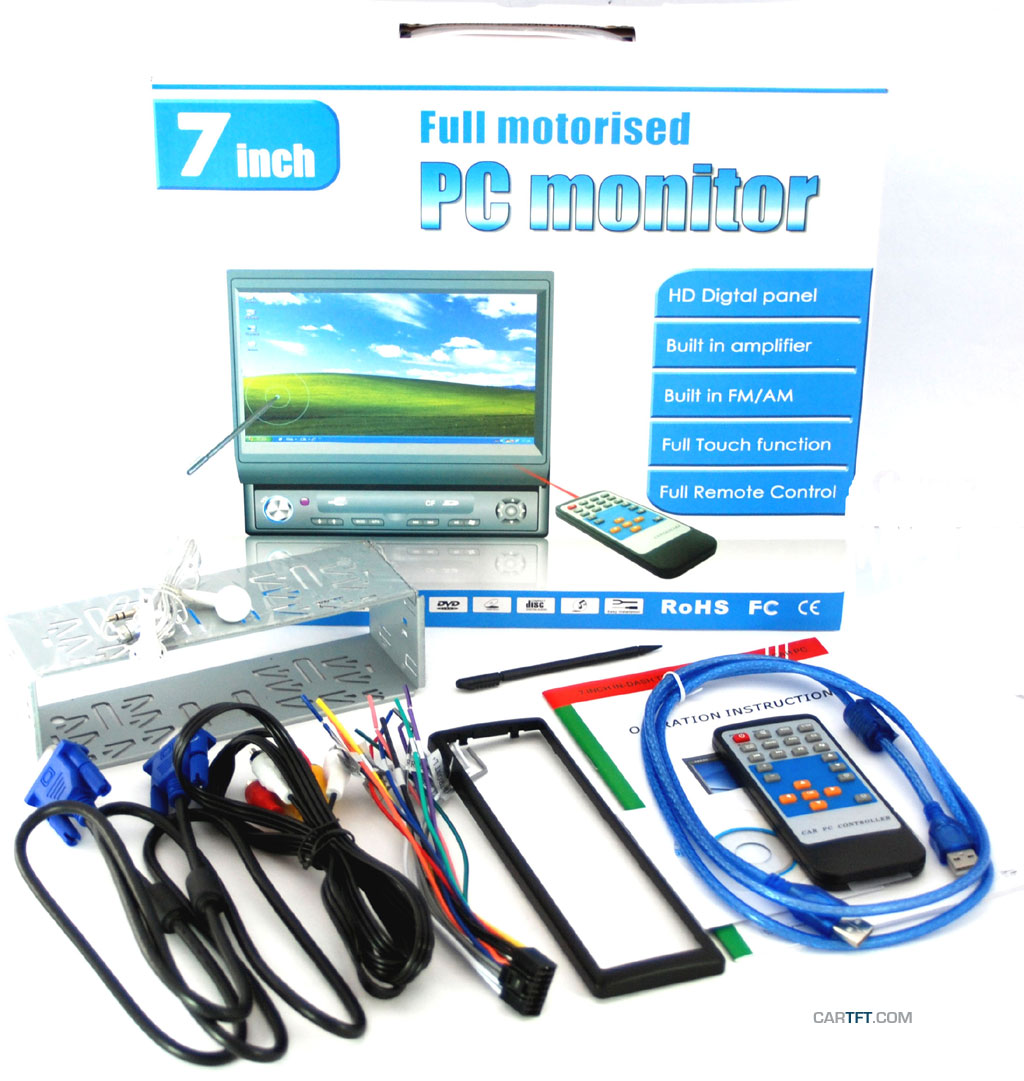

| Side |
|
| LCD Size | 7" |
| Aspect Ratio | 16:9 |
| VGA resolutions | 800x480-1024x768 |
| Native resolution | 800x480 |
| Dot resolution | 2400x480 |
| Brightness | 400 |
| VGA Input | D-SUB 15 |
| Video Input | 2x PAL/NTSC (RCA) |
| Audio Input | 1x RCA |
| Touchscreen | USB |
| Case color | black |
| Power Input | 12VDC |
| Power Consumption | 10W |
| Case size | 190 x 178 x 50 mm |
| Visible area | 154 x 93 mm |
| Certificates | CE |
| Style | In-Dash |
| yes | Adjustable backlight |
| yes | Auto Power-On |
| no | Picture In Picture |
| yes | IR Remote |
| no | Headrest mount |
| yes | TS pencil |
| yes | Earphone |
| no | Adjustable video aspect |
| no | Mirrorable video |
| no | Reverse camera input |
Complete PC VGA Touchscreen TFT solution for the Radio-DIN-slot.
Many features and functions
The fully motorized 7“ touchscreen display enables comfortable control. Directly at the front, behind a cover, there is an USB connector, a CompactFlash/SD-card reader and earphone connector. These connectors are "looped through" to the device rear side where you can connect them to your PC.
The integrated AM/FM radio can be used while PC is turned off and the 4x45 amplifier lets you connect your car speakers to the device.
Customized for mobile environment
The display can get wired to vehicle ignition plus line and thereby fade in/out automatically. Besides the touchscreen you can control the display with the included IR remote control unit and the buttons at the front.
Features :
- Motorized 7" Touchscreen display
- AM/FM Radio (useable "Standalone" (PC off))
- Amplifier (4x 45W) for direct connection to car speakers
- USB, CF-/SD-Reader in front
- Fades in/out automatically based on ignition plus
- Infrared remote control unit
- Additional interface buttons in the front
Also available as version with integrated PC (CTFDINPC-1)
Notes :
- The fade out angle can be saved : After the display has faded out simply steer the display into the desired position and let the display fade in again. When you let it fade out again then the display will automatically fade out to the last position.
Image gallery :
Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating.
If you want you also can leave a comment.
Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And
you can benefit from reports other customers are giving.
In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters)
on your account. The credit will be substracted automatically on your next order !
We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders).
"Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.
Customer ratings:
 Average rating, based on 6 ratings |
from TheMetalMann am 15.01.2011
|
| See all my comments
Radio fahrt nicht automatisch aus egal wie man es klemmt, touch ist dafür super und bild quali ist auch ok
mir ist unteranderem aufgefahlen das die belegung ganz anderst ist als wie auf den kabeln angegeben. chinch eingang war z.b. der ausgang genauso war es bei der strom versorgung
from marceldahms am 27.12.2010
|
es fährt nicht automatisch aus,hat kein RDS, Tonqualität Note 3, Bildqualität gut, Made in Japan zu teuer!
from kamilolo am 27.11.2010
|
| See all my comments
Qualitativ kann das Gerät nicht 100%ig überzeugen. Die Ausfahrmechanik bleibt gelegentlich stecken und die Audioqualität bekommt von mir eine 3-!
Die Bildqualität ist okay und die Touchfunktion auch (sobald man endlich den ferlixten Treiber installiert bekommt)....
Preis/Leistung = Naja, Chinaware halt.
from Ulrafit am 25.06.2010
|
Fährt nicht automatisch mit Zündplus aus (muss manuell eingeschalten werden) ansonsten Top Gerät.
Great product colours are a bit ierd at times but nothing to worry about doesnt open up by it's onw though but if that is the only downside of this greta product ill go with it real downside to this is it's built in amplifier though anyway still a verry good product
