![Intel D525MW (with integrated Atom 2x 1.8Ghz CPU) [<b>FANLESS</b>]](http://lkwnavi.de/image_db/Intel_D525MW.jpg)
- Assemblation of system (Hardware + Software) -

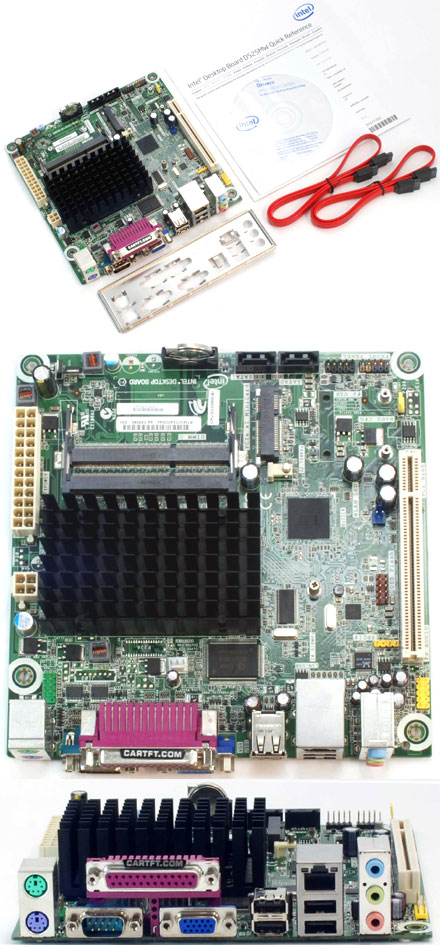

Intel D525MW (with integrated Atom 2x 1.8Ghz CPU) [FANLESS]
PRODUCT IS CURRENTLY NOT AVAILABLE !
The Intel® Desktop Board D525MW is designed to unleash the power of the new Intel® Atom™ processor D525 which supports the new revolutionary two–chip layout. This new chipset layout reduces the package footprint by 70 percent, enabling easier routing and better heat flow. The Intel® NM10 Express Chipset also provides additional flexibility and upgradability with two slots of single channel DDR3 memory at 1066/800 MHz supporting up to 4GB maximum.
With breakthrough low-power silicon, the Intel Desktop Board D525MW can be used with a passive thermal solution based on the recommended boundary conditions.
The Intel Desktop Board D525MW represents a fu
[more]
| CPU | Intel Atom D525 2x1.8Ghz |
| Graphics | Intel GMA 3150 |
| Formfactor | ITX (17x17cm) |
| RAM | 2x DDR-III 800/1066 |
| Audio | Realtek High Definition Audio |
| Base | Intel ITX |
| USB | 8x USB 2.0 |
| Firewire | -- |
| IDE/SATA | 2x SATA |
| LAN | 1x 10/100/1000 |
| Parallel | 1x |
| Serial | 1x |
| no | TV-Out |
| yes | PCI |
| yes | Mini-PCI |
| no | IDE |
| no | DVI |
| yes | 800x480 Resolution |
| yes | Passive-Cooling |
| no | PCI-Express |
| no | PCMCIA |
| yes | SATA |
| no | CPU changeable |
| no | Compact Flash |
Please login for creating product ratings.
from Kahle am 10.11.2011
|
| See all my comments
from DarkwarrioR am 16.08.2011
|
| See all my comments
from Ter Roshak am 22.07.2011
|
| See all my comments
from position-control am 08.12.2010
|
| See all my comments
1
2
3
4
5
Forward
Your rating:
Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating.
If you want you also can leave a comment.
Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And
you can benefit from reports other customers are giving.
In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters)
on your account. The credit will be substracted automatically on your next order !
We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders).
"Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.
Customer ratings:
 Average rating, based on 24 ratings |
from Kahle am 10.11.2011
|
| See all my comments
Leistungsfähiges Board mit relativ geringer Stromaufnahme.Für einen Dauerlauf als Server daher gut geeignet.
Leider gibt es bei einer Spezialanwendung (Echolink, Voice over IP )Probleme mit dem Realtek Onboard Soundchip.
from DarkwarrioR am 16.08.2011
|
| See all my comments
I have this great board for a month and so far I have no problems with it. It works great and really doesn't need any fan to cool. even on constant 30% cpu load for days it won't overheat, cpu may reach over 80° after time, but it doesn't reach its critical temperature of 100°. Only problem is if you want to plug in a case fan on board, You cannot adjust it's speed below 30% in bios, but I worked around this problem by adding a resistor making fan almost inaudible.
This board will perform fine with its passive cooling as a server or media pc, the cpu is powerful and cool, so I recommend this.
from Ter Roshak am 22.07.2011
|
| See all my comments
Super Board, seit der Essential Serie hat sich doch einiges getan. Das Board verbraucht ca. 1/3 des Stroms was mein Atom 330 Board gesaugt hat. Die Passivkühlung ist ausreichend, allerdings wird der freiliegende NM-10 Chipsatz doch sehr heiss. Laut Intel ist das kein Problem, da er 120 Grad aushält. Ich habe dennoch einen Kühlkörper drauf geklebt, um die Temperatur etwas zu senken und die BGA Lötungen zu schonen (man kennt ja das XBOX Problem).
from position-control am 08.12.2010
|
| See all my comments
Einwandfrei Ware
Update from :2011-02-02 07:40
Sehr gut gelaufen
Update from :2011-07-20 05:44
Produkt entspricht in vollem Umpfang der Produktbeschreibung........Technischer Support war lückenlos und kompetent.Insgesamt eine unkomplizierte Abwicklung und eine sehr schnelle Lieferung.Dieser Onlineshop ist sehr zu empfehlen.
Compatible enclosures
CFI A-7879 V2 Mini-ITX enclosure (4x 3.5" NAS, 1x 2.5", Hot-Plug, 1x PCI, 250W)
M350 Mini-ITX enclosure
MHero-L-B Mini-ITX enclosure (1x PCI, Slimline ODD, 84W PSU)
MHero-L-R Mini-ITX enclosure (1x PCI, Slimline ODD, 84W PSU)
MHero-S-R Mini-ITX enclosure (with 84W PSU)
Sehr cooles Mainboard zum vernünftigen Preis und wirklich schnell genug, so`nen PC hätte manch einer gern zu haus.
