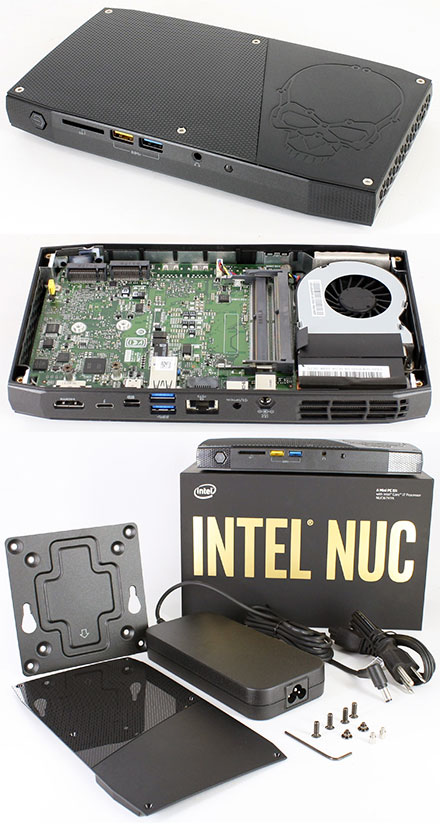

Intel NUC6i7KYK (Intel Core i7-6770HQ CPU 4x 2.6Ghz, 1x HDMI, 1x dP, 2x M.2)

3D 360° View

239.00 EUR
incl. 19% VAT, plus shipping
In Stock (23 pcs)

Because of its size (211 x 116 x 28mm !) the system is perfect for these applications :
- Gaming
- POS
- Digital Signage
- Kiosk

Or use as attractive office-computer or server.

For a full PC you need in addition :
- SO-DDR-4 RAM
- M.2 SSD
- Cold devices power cord (Cloverleaf)
Features :
- CPU: Intel Core i7-6770HQ, 4x 2.60GHz, 6MB Cache, 45W TDP
- RAM: 2x DDR4 SO-DIMM, dual PC4-17000S, max. 32GB (UDIMM)
- 2x M.2/M-Key (PCIe 3.0 x4, M.2 2280/2260/2242)
- Intel Iris Pro Graphics 580 (IGP), HDMI 2.0, Mini DisplayPort 1.2
- 4x USB 3.0, 1x Gb LAN (Intel I219-LM), 1x Klinke, Cardreader (SD/SDHC/SDXC), NFC (Header)
- WLAN 802.11a/b/g/n/ac, Bluetooth 4.2
- Audio: 7.1 (Intel HD Audio)
- Power supply: 120W, external
- VESA-mounting: 75x75, 100x100 (included)
- Dimensions (WxHxD): 216x28x116mm

The Intel® NUC Kit NUC6i7KYK with 6th generation Intel® Core™ i7 processor and Intel® Iris™ Pro Graphics unleashes maximized performance for intense game play. We’ve created a wicked new look, along with a redesigned chassis that lets you take full advantage of every GHz of the quad-core processor without overheating—making the NUC6i7KYK totally cool. Literally.


Processor	6th generation Intel® Core™ i7-6770HQ processor with Intel® Iris™ Pro graphics (2.6 to 3.5 GHz Turbo, Quad Core, 6 MB Cache, 45W TDP)
Memory	Dual channel DDR4-2133+ SODIMMs 1.2/1.35V, 32 GB maximum
Graphics	Intel® Iris™ Pro Graphics 580 1x HDMI* 2.0 (4K 60 Hz) 1x Mini DisplayPort* 1.2 (4K 60 Hz) 1x DisplayPort* 1.2 via Type-C
Audio	Up to 7.1 multichannel digital audio via HDMI or DisplayPort signals 3.5mm front headset jack, 3.5mm rear speaker/TOSLINK combo jack
Peripheral Connectivity	Thunderbolt™ 3 (40 Gbps) or USB 3.1 Gen2 (10 Gbps) via USB Type C connector 2x front USB 3.0 (one charging) 2x rear USB 3.0, 2x internal USB 3.0 and 2x internal USB 2.0 via header Consumer infrared port on front panel
Storage	2x M.2 22x42/80 (key M) slots for SATA3 or PCIe* X4 Gen3 NVMe or AHCI SSDs SDXC slot with UHS-I support
Networking	Intel® I219-LM 10/100/1000 Mbps Ethernet Intel® Dual Band Wireless-AC 8260 soldered-down, (IEEE 802.11ac 2x2, Bluetooth* 4.2, internal antennas, Intel® Wireless Display 6.0)
Enclosure	Metal and plastic with replaceable lid Dimensions: 211 mm x 116 mm x 28 mm
Power Adapter	19V, 120W AC-DC power adapter
Additional Features	Support for user-replaceable third party lids NFC header OS certs: Microsoft Windows® 10, 8.1, 7 logo’d OS compatibility: compatible with various Linux* distros Kensington* lock with base security 3-year warranty
Included in the box	Intel® NUC Kit NUC6i7KYK integrated in enclosure: Additional lid without skull on it VESA* mount 19V 120W power supply Integration guide Processor badge

Data sheet	Download (PDF)
Data sheet	Print view
Specifications	Download (PDF)
