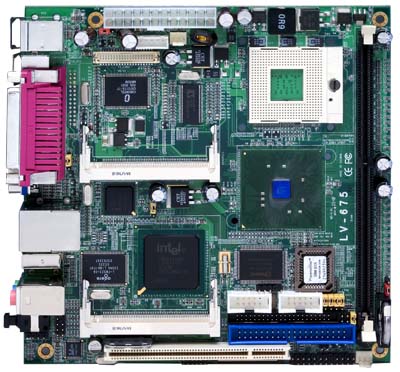

Form Factor |
Mini-ITX form factor at 170
x 170 mm |
CPU |
Micro-FCPGA 478 Mobile Intel
Pentium M / Celeron M CPU up
to 2.26 GHz @ 400/533 MHz FSB |
Memory |
One 184-pin DIMM socket
Support up to 1 GBytes DDR
200/266/333 SDRAM |
Chipset |
Intel high performance chipset
|
Watchdog Timer
|
Generates a system
reset with internal timer for 1 to 255 sec. |
Power Management
|
ACPI 2.0 compliant, supports
power saving mode . |
Real Time Clock
|
Intel ICH4 built-in RTC with
onboard lithium battery |
PCI Enhanced IDE
|
40-pin UltraATA/100
bus master IDE channels And
one onboard 44-pin IDE connector |
VGA Interface
|
Built-in Intel Extreme Graphics Video
Memory up to 64 MB shared with system
External
DB15 female connector on rear I/O panel
|
TV-out Interface
|
S-vodeo & Composite TV-out |
LAN Interface
|
Intel 82541PI Giga Mbps Ethernet
interface |
Audio Interface
|
Onboard
ACL655 AC97 3D audio codec 5.1
channel, line-in, line-out, Mic-in, CD-in and S/P DIF interface |
Hi-Speed USB 2.0
|
Intel ICH4 chipset built-in
Hi-Speed USB 2.0 interface with
480 Mbps of data transfer rate and bootable setting in BIOS |
Multi-I/O Port
|
1 x RS232 & 1 x RS232/422/485,
1 x parallel, 4 x USB 2.0, 1 x IrDA, 1
x FDD, 8-bit GPIO, 1 x PS/2 keyboard and mouse port. |
Solid State Disk
|
IDE support DiskOn Module with +5V power supply
|
Expansive Slot
|
One 32-bit PCI slot supports 2 bus master
PCI via riser card, and 2 x Mini-PCI
|
Environment |
Power Requirement: Standard 20/24-pin ATX power
supply Dimension (W x L): 170mm x 170mm with standard Mini-ITX form factor
Operation Temperature: 0 ~ 60oC (32 ~ 140oF) |
Bonne carte mère, mon seul regret est que le réseau soit limité au 10Mbt. A remarquer que le port pci ex reconnait très bien les cartes graphiques récentes, mais dans ce cas choisissez un modèle avec alimentation indépendante, la carte mère doit un peut souffrir de l'ajout de demande de courant électrique...
