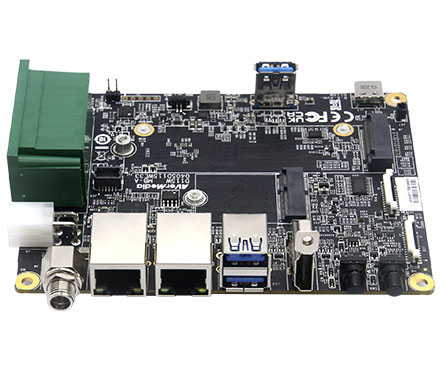

AVerMedia D115W CarrierBoard (für NVIDIA Jetson Orin NX / Orin Nano)

AVerMedia D115W CarrierBoard (für NVIDIA Jetson Orin NX / Orin Nano)
  • NVidia Jetson !
  • Carrier Board !

AVerMedia's AI Carrier board D115W applies to NVIDIA® Jetson Orin NX/Orin Nano module. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

D115W is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others&rsqu
[more]

Share

229.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart

AVerMedia's AI Carrier board D115W applies to NVIDIA® Jetson Orin NX/Orin Nano module. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

D115W is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others’ Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.

  • Applies to NVIDIA® Jetson Orin NX/Orin Nano
  • 2 x 4 Lane MIPI CSI-2 MIPI Camera input
  • 2 x M.2. for WIFI and SSD and 1 x HDMI output
  • 2 x GbE RJ-45 (Optional: Ethernet 1 for PoE )
  • 2 x GbE RJ-45, 3 x USB 3.2 and 20-pins expansion header
  • Operating temperature: -40°C ~ 85°C
  • Dimension: 120mm x 90mm(4.72” x 3.54”)


Model

D115W

Type

Carrier Board

NVIDIA GPU SoC Module Compatibility

NVIDIA® Jetson Orin NX 16G/8G module
NVIDIA® Jetson Orin Nano 8G/4G module

Networking

2x GbE RJ-45

(Optional: Ethernet 1 for PoE* )
1xM.2. key E 2230 for wifi

Display Output

1 x HDMI output 3840 x 2160 at 60Hz for Orin NX,30Hz for Orin Nano

Temperature

Operating temperature -40°C~85°C
Storage temperature -40°C ~ 85°C
Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs(Internal)

2x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch Connector

USB

1x USB 2.0 type C for recovery
3x USB 3.2 Type-A

Storage

1x M.2. key M 2280 for NVMe

Expansion Header

20 pins:  2x I2C, 2x UART, 4x GPIOs, 1xCAN (EU terminal block)

Power requirement

DC in JACK on board & ATX 4pin
12V/5A, 9V~24V is recommended.

Power Cord

US/JP/EU/UK/TW/AU/CN (optional)

Thermal solution

Heat sink with fan (optional)

Buttons

Power and Recovery

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

PCB/Electronics Mechanical Info

120mm x 90mm(4.72” x 3.54”)

Weight: 125 g



Certifications

CE, FCC, KC(TBA)

Package

1x D115W Carrier board
Terminal blocks and screws

Data sheet Download (PDF)
Data sheet Print view
