Casetronic Travla C134

PRODUCT IS CURRENTLY NOT AVAILABLE !

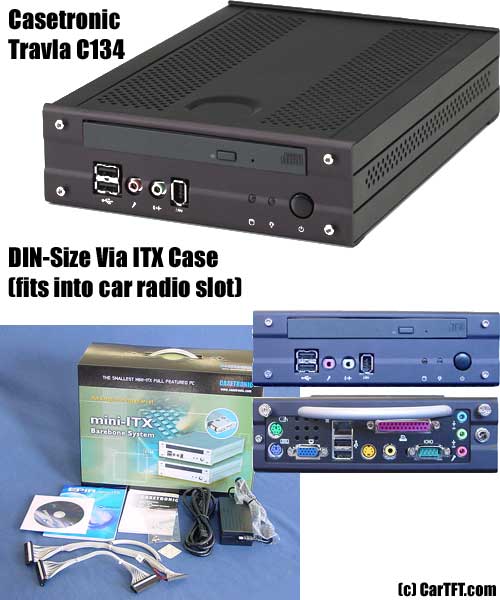

Casetronic Travla C134

With this, probably the smallest computer case of the world, you are
enabled to operate a powerful PC in the DIN-slot of your car.
(car radios have DIN-size, too)
But on your desk, this case is a beauty, too.

The case is compatible to all VIA EPIA-M boards (even the new M10000)

You only need the following components for a fully configured system :
- this casing
- VIA EPIA-M board (eg. M10000)
- eg. 256MB DDR low profile RAM 0,8" inches high [click]
- eg. 40GB HDD 2,5"
- eg. low profile DVD-drive

Further informations : If yo
[more]

Share

With this, probably the smallest computer case of the world, you are
enabled to operate a powerful PC in the DIN-slot of your car.
(car radios have DIN-size, too)
But on your desk, this case is a beauty, too.

The case is compatible to all VIA EPIA-M boards (even the new M10000)

You only need the following components for a fully configured system :
- this casing
- VIA EPIA-M board (eg. M10000)
- eg. 256MB DDR low profile RAM 0,8" inches high [click]
- eg. 40GB HDD 2,5"
- eg. low profile DVD-drive

Further informations : If you NOT want to build a CD-ROM oder DVD-drive into the case, you can use 1,25-inch DDR-RAM.
If you want to build this case into your car, you maybe have to use a DC-DC converter to stabilize the 12V input. (ITPS or CarTFT DC/DC Converter)

If you plan to stick this case into the DIN-slot of your car, then please pre-check the depth of your DIN-slot !

Configuration hints
RAM DDR low profile 0,8" inches high (optional)
2 x 2,5" drive bays 2,5" HDD & 2,5" (optional)
2,5" slim type DVD o. CD-ROM (optional)
Specifications
Dimensions 7" x 2" x 10" or 177.80mm x 50.80mm x 254.00mm
Internal Power Supply Built-in 60W DC power board
External AC Adapter -- Input (AC 100~240 V)
-- Output (DC 12V, 5A) 60W
Front Access 2 x USB(2.0), Firewire and Audio port
Included in delivery
- fanless external power adaptor 60W
- lowprofile heatsink
- rounded IDE cables
- detailed manual
Data sheet Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 16 ratings
4 von 5 Sternen from travla am 31.05.2013 |

Bezahlung, Versand und Information darüber kann kaum transparenter sein. Das Produkt selbst, möchte ich umfunktionieren um einen ganz normales Mini itx zu betreiben, wäre toll wenn es dazu eine passende Blende gäbe, oder eben gleich eine komplette Variante, deren Einzelteile sicher zueinander passen.

JSI

5 von 5 Sternen from ureinkauf am 11.04.2012 | | See all my comments

Volle *
Gute Verarbeitung & Material,
wie von Casetronic gewohnt,
leider unbrauchbare Heckblenden & NT,
wenn man nicht die lahmen ViaBoards verwenden will.
Ist aber klar als ViaITX beschrieben.
Zieht wohl einen Umbau für Standart-Miniitx nachsich.
Aber das lohnt sich angesichts der Baugröße &
Top Qualität

4 von 5 Sternen from fritsmetz am 14.01.2011 | See all my comments

Bought this package from TFT in 2005 for building into an overhead console. Fantastic equipment. One thing to note is that vibration protection is required. Both for components and hard drive ? unless you go SSD.

5 von 5 Sternen from elhoy am 14.12.2010 | See all my comments

plenty of fixings, smooth finish on all edges and very customisable. a great case. even better for being DIN car stereo format.

5 von 5 Sternen from fraho01 am 12.02.2010 |

wirklich das kleinste! weniger geht wohl wirklich im moment nicht- bin damit sehr zufrieden- lieferung und abwicklung des auftrages das beste was ich bislang erlebt habe - schnell und unkompliziert- vielen dank- jederzeit wieder - f-h-
