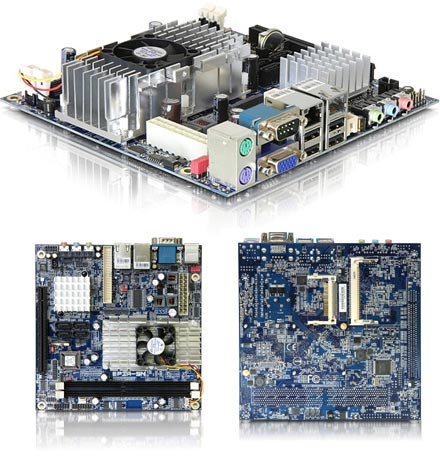

VIA EPIA SN18000

PRODUCT IS CURRENTLY NOT AVAILABLE !

1x Mini-PCI
Dual LAN !
Compact Flash !

CPU	VIA C7 1.8Ghz
Graphics	VIA Chrome9™HC Graphics Video acceleration
Formfactor	ITX (17x17cm)
RAM	2x DDR-II 400/533/667
Audio	VIA VT1708A High Defination Audio Codec
Base	VIA ITX

USB	6x USB 2.0
Firewire	--
IDE/SATA	1x IDE, 4x SATA
LAN	2x 10/100/(1000)
Parallel	1x
Serial	2x

no	TV-Out
no	PCI
yes	Mini-PCI
yes	IDE
no	DVI
no	800x480 Resolution

no	Passive-Cooling
yes	PCI-Express
no	PCMCIA
yes	SATA
no	CPU changeable
yes	Compact Flash

Model	• VIA EPIA SN18000G
Processor	• VIA C7 1.8GHz
Chipset	• VIA CN896 North Bridge
Chipset	• VIA VT8251 South Bridge
System Memory	• 2 DDR2 400/533/667 DIMM sockets
System Memory	• Up to 4GB Memory Support
VGA	• Integrated VIA Chrome9™HC Graphics Video acceleration
Expansion Slots	• 1 16-Lane PCI-E slot
Expansion Slots	• 1 32-Bit miniPCI slot
Onboard IDE	• 1 UltraDMA 133/100/66 connector
Onboard LAN	• 1 VIA VT6103L 10/100Mbps Ethernet PHY
Onboard LAN	• 1 VIA VT6130 PCI-E Gigabit Ethernet Controller
Onboard Audio	• VIA VT1708A High Defination Audio Codec
Onboard TPM	• Infineon SLB9635TT 1.2 (Trusted Platform Module)
Onboard I/O Connectors	• 4 SATA II connectors
	• 2 Fan pin connectors: CPU/Sys FAN
	• 1 USB pin connectors for 2 additional USB 2.0 ports
	• 1 LVDS/TTL/DVI module connectors(an add-on card is required)
	• 1 CF(compact Flash) type I connector(share with IDE1)
	• 1 serial port pin connector for COM2 ( 5V/12V selectable)
	• 1 LPC header
	• 1 CIR pin connector(switchable for KB/MS)
	• 1 SIR pin connector (IRDA 1.0)
	• 1 SMBUS connector
	• 1 Digital I/O pin connector
	• 1 S/PDIF out pin connector
	• 1 Front-panel pin connector
	• 1 Front-panel audio pin connectors(MIC and Line-out)
	• ATX power connector
Back Panel I/O	• 1 PS2 mouse port
	• 1 PS2 keyboard port
	• 1 Serial port
	• 1 VGA port
	• 2 RJ-45 LAN connector
	• 4 USB 2.0 ports
	• 3 Audio jacks for MIC-In, Line-In & Line-Out (5.1 Support)
BIOS	• AMI BIOS
BIOS	• LPC 4/8Mbit flash memory
Operating System	• Windows 2000/XP, Linux, Win CE, XPe
Management	• Fan control
	• CPU voltage monitoring
	• AC power failure recovery
	• System power management
	• Wake-on-LAN, Keyboard-power-on, Timer-Power-on,
	• Watch-Dog Timer,
Operating Temperature	0°C ~ 50°C
Operating Humidity	0% ~ 95% (relative humidity; non-condensing)
Form Factor	• Mini-ITX( 6 layers)
Form Factor	• 17cm x 17cm
